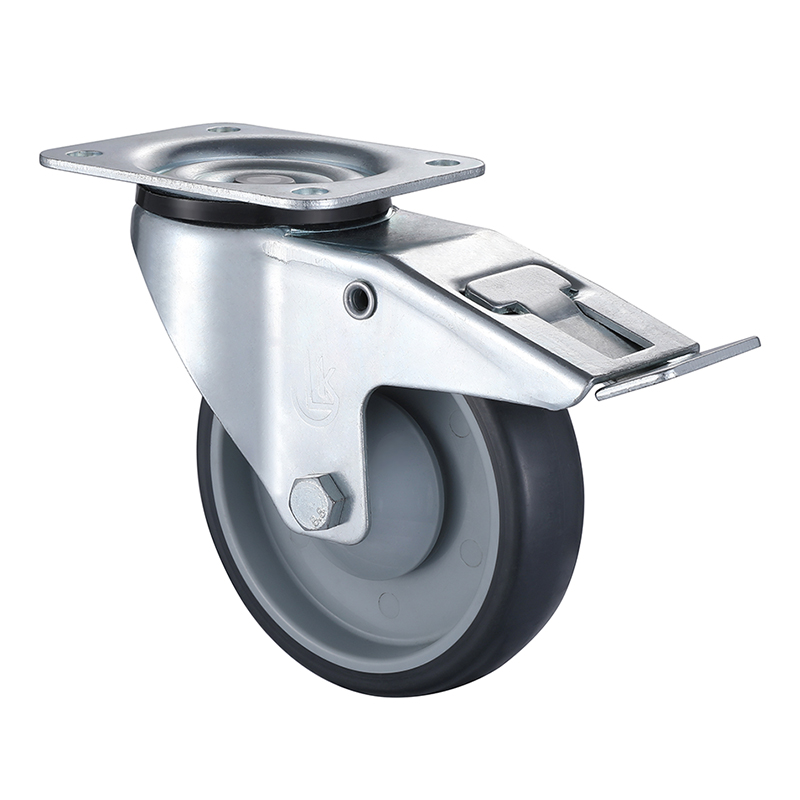

Industrial Grey Thermoplastic Rubber Swivel Castors with Total Brake, Diameter 100 to 200mm
| Code Number |
Bearing Type |
Wheel diameter x Width of thread ( mm ) |
Size of plate ( mm ) |
Plate hole centres ( mm ) |
Plate hole ( mm ) |
Offset ( mm ) |
Overall height ( mm ) |
Load capacity ( mm ) |
|---|---|---|---|---|---|---|---|---|
| LAPB100B32TBBA |  |
100x32 | 105x80 | 80x60 | 11x9 | 40 | 125 | 100 |
| LAPB125B32TBBA | |
125x32 | 105x80 | 80x60 | 11x9 | 40 | 155 | 150 |
| LAPB160B40TBBA | |
160x40 | 135x110 | 105x80 | 13.5x11 | 60 | 190 | 200 |
| LAPB200B40TBBA | |
200x40 | 135x110 | 105x80 | 13.5x11 | 60 | 235 | 250 |
Wheel Tread Material
Thermoplastic Rubber
Wheel Centre Material
Polypropylene
Install Type
Top plate
Lock Type
Total Brake
Temperature Range
-20 to + 60℃
Color
Grey
The housing of the castor is made of steel with a galvanised surface and RoHS compliant zinc coating, which improves corrosion resistance and extends the service life of the castor.
The swivel bracket with brake can swivel the castors at any angle, the stable and reliable mechanical design brings high durability, and stepping on the brake pads immediately stops the trolley safely.
The wheel tread of the castor is thermoplastic rubber, hardness A 85, the wheel core is made of polypropylene, single ball bearing, ambient temperature -20°C to 60°C, Equipped with a small plastic dust cover
We have stock in our warehouse and are able to deliver very quickly to meet the urgent needs. These casters are quality checked and are perfect casters with stable mechanism, high durability and first choice for light trolleys used indoors.
Every L&K castor is high quality and available in large quantities with discounts for bulk orders.
If you have any questions about castors, please do not hesitate to contact L&K's sales manager.
