In Stock Industrial Bolt Hole Yellow Polyurethane Castors
| Code Number |
Bearing Type |
Wheel diameter x Width of thread ( mm ) |
Offset ( mm ) |
Centre hole ( mm ) |
Overall height ( mm ) |
Load capacity ( mm ) |
||
|---|---|---|---|---|---|---|---|---|
| LBHS80F38UHDX |  |
80x38 | 40 | ф13 | 107 | 250 | ||
| LBHS100F38UCDX | |
100x38 | 40 | ф13 | 131 | 300 | ||
| LBHS125F38UCDX | |
125x38 | 40 | ф13 | 154 | 350 |
Wheel Tread Material
Polyurethane
Wheel Centre Material
Aluminium
Install Type
Bolt hole
Lock Type
Swivel
Temperature Range
-20 to + 70℃
Color
Yellow
German polyurethane castor supplier, bolt hole polyurethane castors in stock, fast delivery, large quantity discounts.

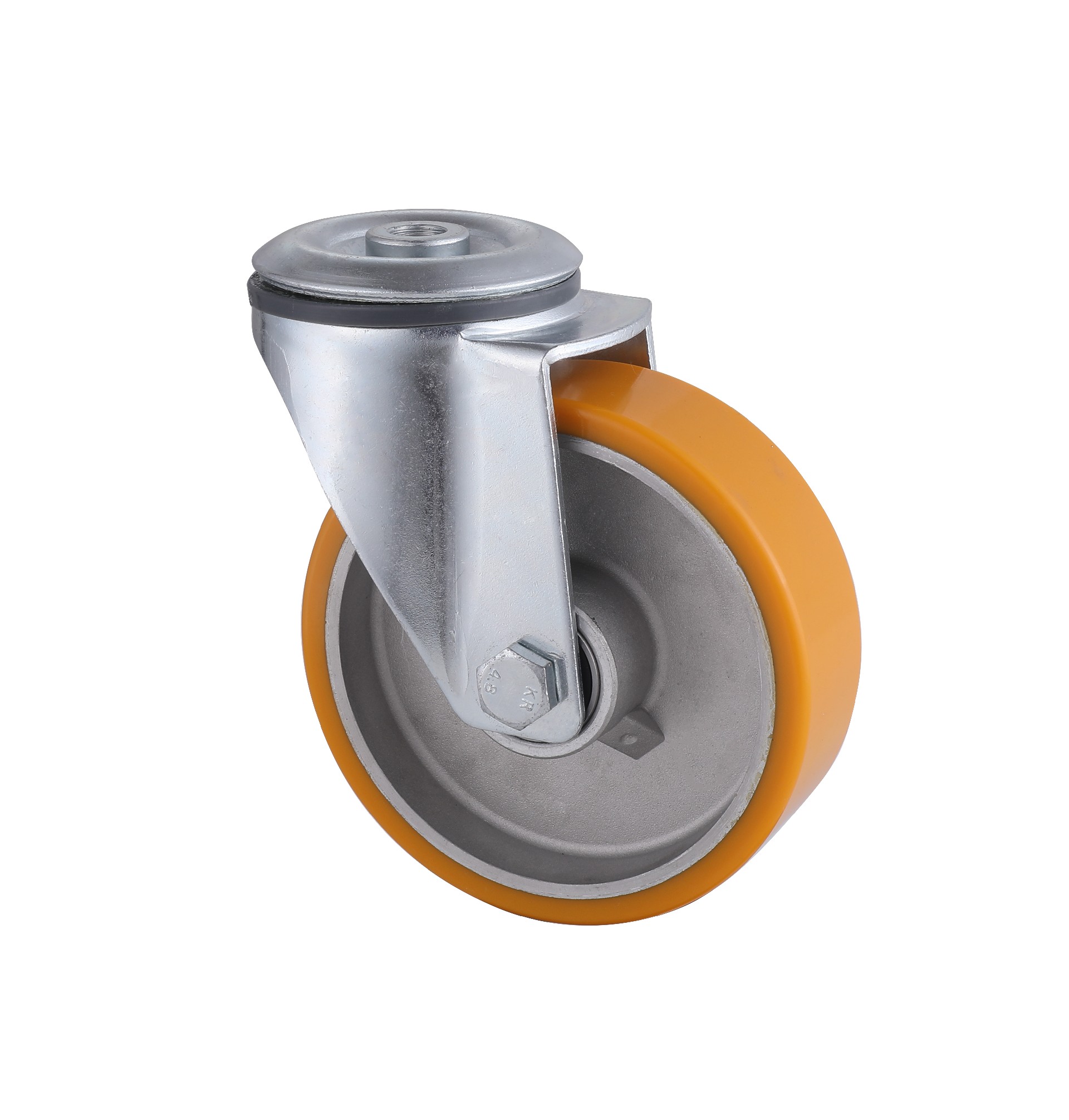

The castor has a bolt hole on the top, which is bolted to the trolley or equipment and can rotate 360 degrees in any parallel direction. The surface is galvanized and RoHS compliant to improve corrosion resistance and extend the life of the castor.
The wheel tread is made of yellow polyurethane with a hardness of A 94, double ball bearings, and an ambient temperature of -20°C to 60°C.
These polyurethane castors have very high load capacity while maintaining strong support and smooth rolling. The tread hardness of A 94 brings high wear resistance and low rolling resistance. It is a very durable castor and is the first choice for high-load trolleys or equipment.
Uses:
Suitable for trolleys, cages and transport equipment in any industry.
If you have any other requirements for castors, please contact our sales manager (Mr. Luka) immediately.
Available in large quantities and discounts for large orders.
