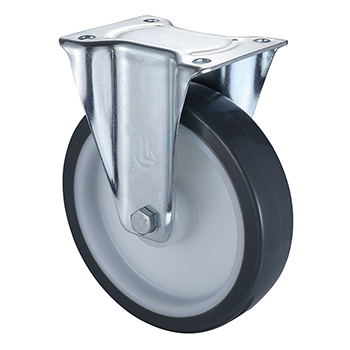

L&K GmbH Supply Industrial Grey Thermoplastic Polyurethane Fixed Castors
| Code Number |
Bearing Type |
Wheel diameter x Width of thread ( mm ) |
Size of plate ( mm ) |
Plate hole centres ( mm ) |
Plate hole ( mm ) |
Overall height ( mm ) |
Load capacity ( mm ) |
|
|---|---|---|---|---|---|---|---|---|
| LAPF80B34UARX |  |
80x34 | 102X87 | 80x60 | 11x9 | 100 | 120 | |
| LAPF100B34UARX | |
100x34 | 102X87 | 80x60 | 11x9 | 125 | 160 | |
| LAPF125B36UARX | |
125x36 | 102x87 | 80x60 | 11x9 | 155 | 200 | |
| LAPF160B40UARX | |
160x40 | 135x114 | 105x80 | 13.5x11 | 190 | 300 | |
| LAPF200B50UARX | |
200x50 | 135x114 | 105x80 | 13.5x11 | 235 | 300 |
Wheel Tread Material
Polyurethane
Wheel Centre Material
Polyamide
Install Type
Top plate
Lock Type
Fixed
Temperature Range
-20 to + 70℃
Color
Grey
L&K GmbH is a professional supplier of polyurethane fixed castors.
The castor housing is made of steel and is zinc plated. The zinc coating is RoHS compliant and enhances corrosion resistance and the service life of the castor.
Fixed direction travel, no swivel capability, higher stability, generally more economical than other types of castors.
The wheel tread is made of grey thermoplastic polyurethane with a hardness of Shore A 92+3, equipped with roller bearings, and can operate in ambient temperatures ranging from -40°C to 80°C.
These thermoplastic polyurethane castors have a high load capacity. The high hardness wheel tread is very wear-resistant, resistant to water, oil and chemicals. The high hardness wheel tread has low rolling resistance, is easy to push, and is very convenient for workers.
Have questions? Please call 0049 176 18083684 or send an email to sales@lk-rollen.de. We will contact you as soon as possible.
IN STOCK
FAST DELIVERY
SATISFACTION GURANTEED
