Stainless Steel Red Thermoplastic Polyurethane Bolt Hole Castors with Total Brake in Stock
| Code Number |
Bearing Type |
Wheel diameter x Width of thread ( mm ) |
Offset ( mm ) |
Centre hole ( mm ) |
Overall height ( mm ) |
Load capacity ( mm ) |
||
|---|---|---|---|---|---|---|---|---|
| LEHB80D34UAPX |  |
80x34 | 36.5 | ф13 | 107 | 120 | ||
| LEHB100D34UAPX | |
100x34 | 30 | ф13 | 124 | 160 | ||
| LEHB125D36UAPX | |
125x36 | 26.5 | ф13 | 149 | 200 | ||
| LEHB160D40UAPX | |
150x40 | 60 | ф16.8 | 185 | 300 | ||
| LEHB200D50UAPX | |
160x40 | 60 | ф16.8 | 190 | 300 |
Wheel Tread Material
Polyurethane
Wheel Centre Material
Polyamide
Install Type
Bolt hole
Lock Type
Total Brake
Temperature Range
-20 to + 80℃
Color
Red

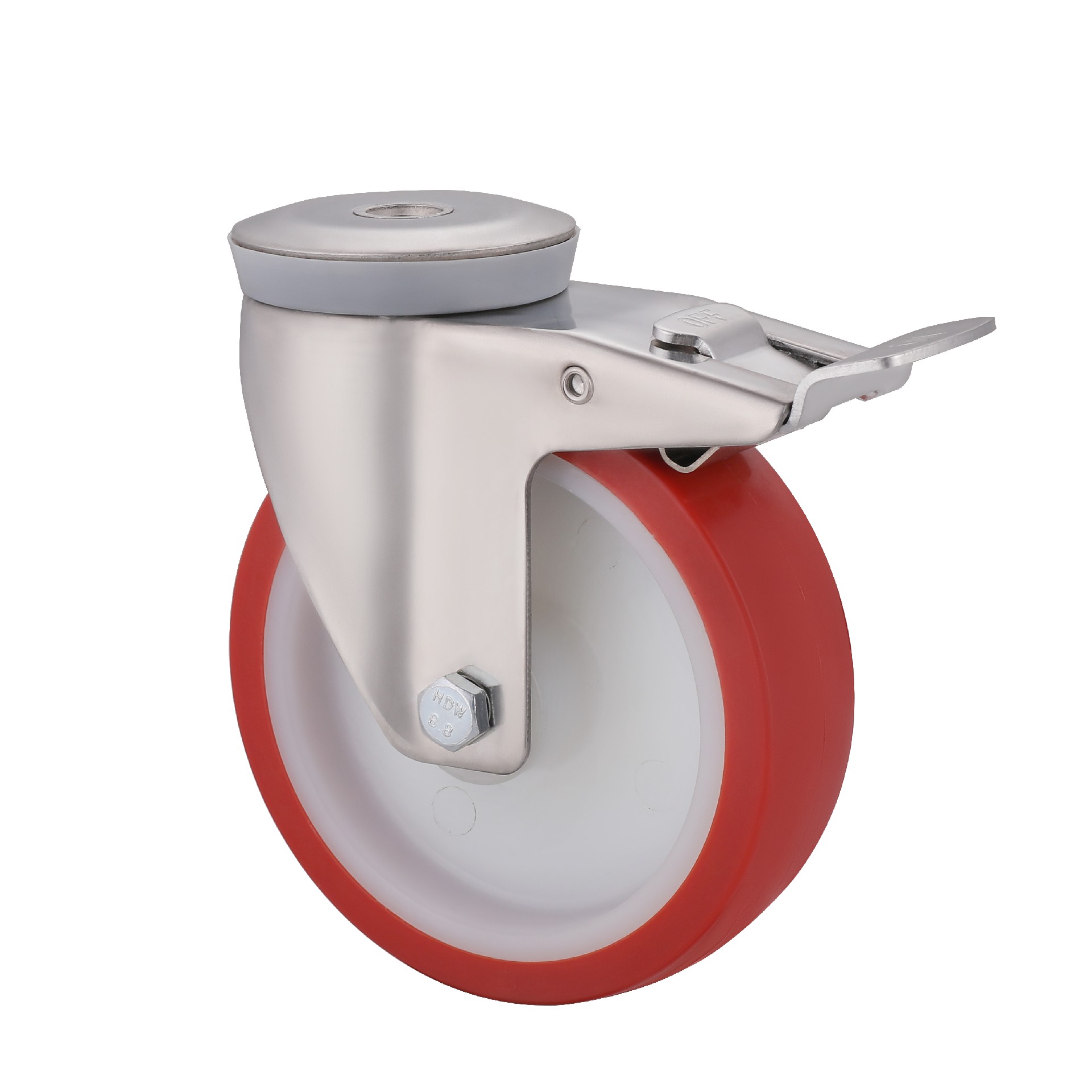

German supplier L&K Rollen supplies this red thermoplastic polyurethane castor with stainless steel bolts. The bolts are available in ф13 and ф16.8. The reliable bracket with full brake can rotate 360 degrees at will, which can stop the trolley steadily at any time. The outer diameter of the castor is 75mm to 125mm, and the load is 120kg to 300kg. It is suitable for installation on any trolley or equipment. It is in stock in the warehouse and can be delivered quickly. Contact us immediately.
Features
Tread material: red thermoplastic polyurethane tread, wheel core is nylon, Shore A 92+3
Bracket design: castor shell is made of stainless steel, ф13 and ф16.8 bolt holes, 360 degrees of rotation
Diameter and load: outer diameter 75mm to 100mm, load 120kg to 300kg
Application
Suitable for any trolley or equipment.
Have questions? Please call 0049 176 18083684 or send an e-mail to sales@lk-rollen.de. We will contact you as soon as possible.
