Industrial Bolt Hole Black Elastic Rubber Castors with Total Brake
| Code Number |
Bearing Type |
Wheel diameter x Width of thread ( mm ) |
Offset ( mm ) |
Centre hole ( mm ) |
Overall height ( mm ) |
Load capacity ( mm ) |
||
|---|---|---|---|---|---|---|---|---|
| LBHB80C38ECDX |  |
80x38 | 40 | ф13 | 107 | 150 | ||
| LBHB100C40ECDX | |
100x40 | 40 | ф13 | 131 | 200 | ||
| LBHB125C40ECDX | |
125x40 | 40 | ф13 | 154 | 250 |
Wheel Tread Material
Elastic Rubber
Wheel Centre Material
Aluminium
Install Type
Bolt hole
Lock Type
Total Brake
Temperature Range
-20 to + 80℃
Color
Black
Wholesale elastic rubber bolt hole castors with total brake, in stock, fast delivery, as soon as the same day.

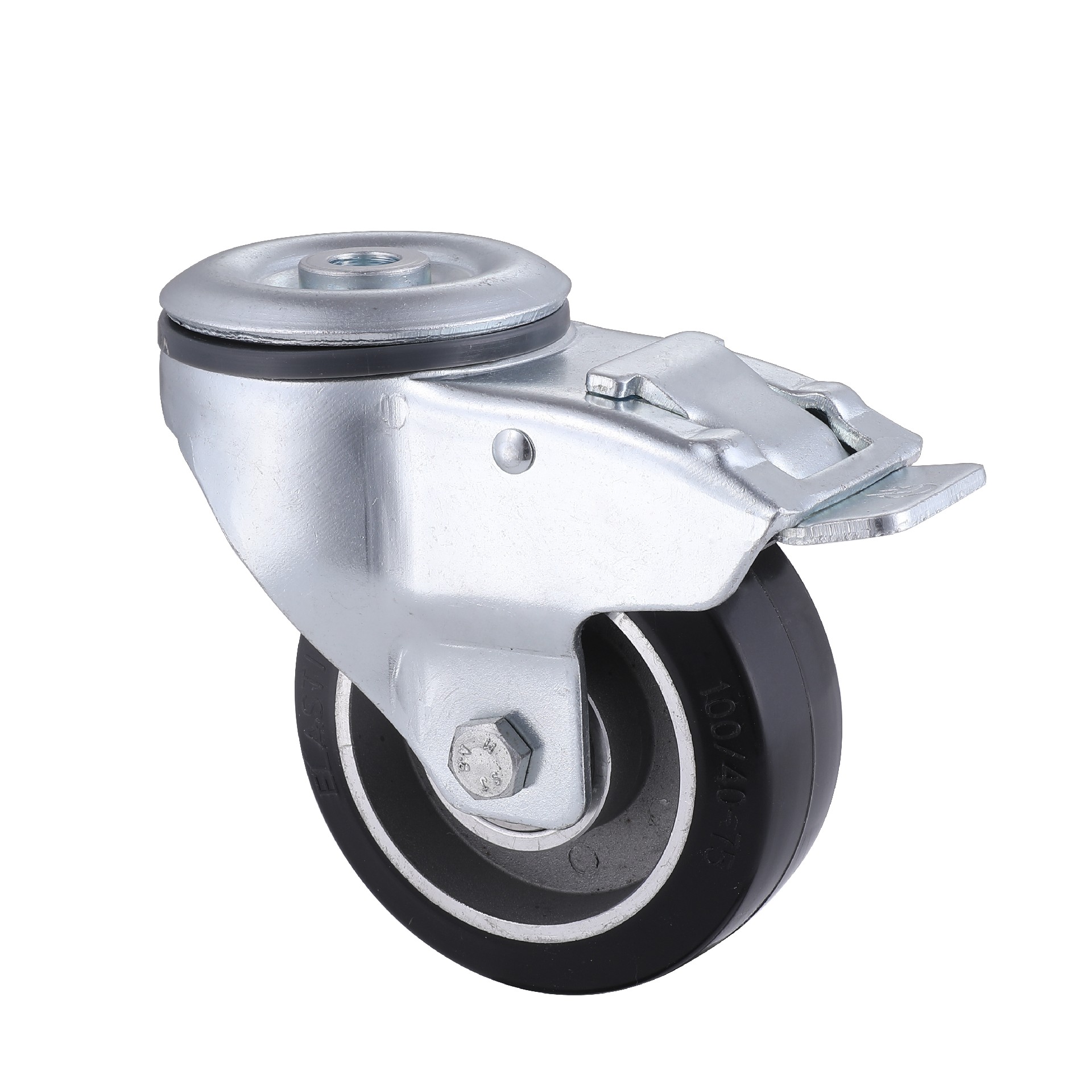

The castor has a bolt hole on the top and is equipped with a brake mechanism that allows you to apply a brake pad to safely stop the cart or equipment. The surface is zinc plated, RoHS compliant, which can improve corrosion resistance and extend the life of the castor.
The wheel surface is made of black elastic rubber with a hardness of 68+3, double ball bearings, and an ambient temperature of -40°C to 80°C.
This elastic rubber castor is a standard size and is suitable for all types of carts or equipment, will not leave marks and protect the floor.
Application:
Suitable for trolleys, cages and equipment to be transported in any industry.
If you have other requirements for castors, please contact our sales manager (Mr. Luka) immediately.
Available in large quantities and discounts for large orders.
