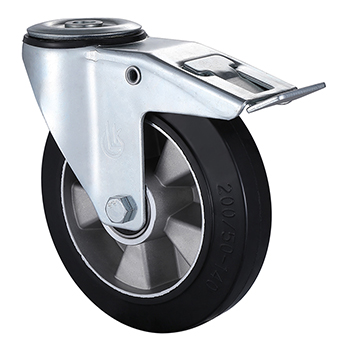

L&K Wholesale Industrial Bolt Hole Black Elastic Rubber Castors with Total Brake
| Code Number |
Bearing Type |
Wheel diameter x Width of thread ( mm ) |
Offset ( mm ) |
Centre hole ( mm ) |
Overall height ( mm ) |
Load capacity ( mm ) |
||
|---|---|---|---|---|---|---|---|---|
| LAHB80C38ECDX |  |
80x38 | 36 | ф13 | 99 | 150 | ||
| LAHB100C40ECDX | |
100x40 | 40 | ф13 | 124 | 180 | ||
| LAHB125C40ECDX | |
125x40 | 40 | ф13 | 154 | 200 | ||
| LAHB160C50ECDX | |
160x50 | 60 | ф16.8 | 185 | 300 | ||
| LAHB200C50ECDX | |
200x50 | 60 | ф16.8 | 230 | 300 |
Wheel Tread Material
Elastic Rubber
Wheel Centre Material
Aluminium
Install Type
Bolt hole
Lock Type
Total Brake
Temperature Range
-20 to + 80℃
Color
Black
L&K Industrial Elastic Rubber Bolt Hole Castor with Total Brake
Bolt-Mount Solutions | Wholesale Pricing
Engineered for precision load control, our brake-equipped castors feature diameter options (80-200mm) and dynamic load capacities (150-300kg) to optimize stability across light-duty industrial trolleys.
Core Engineering
▷ Full-lock braking mechanism
▷ Zinc-plated swivel base (RoHS 3.0 compliant)
▷ -40°C~+80°C operational temperature certification
▷ Dual-row precision ball bearings
Performance Specifications
• Diameter Range: Φ80mm-Φ200mm (EN 12532 standard)
• Max Static Load: 450kg @ 200mm variant
Floor Protection Guarantee
Non-marking DIN-certified tread design
Oil-resistant rubber formulation
≤0.3mm surface indentation index
