L&K GmbH Industrial Blue Elastic Rubber Fixed Castors
| Code Number |
Bearing Type |
Wheel diameter x Width of thread ( mm ) |
Size of plate ( mm ) |
Plate hole centres ( mm ) |
Plate hole ( mm ) |
Overall height ( mm ) |
Load capacity ( mm ) |
|
|---|---|---|---|---|---|---|---|---|
| LAPF80A35EBRX |  |
80x35 | 102X87 | 80x60 | 11x9 | 100 | 140 | |
| LAPF100A36EBRX | |
100x36 | 102X87 | 80x60 | 11x9 | 125 | 180 | |
| LAPF125A36EBRX | |
125x36 | 102x87 | 80x60 | 11x9 | 155 | 200 | |
| LAPF160A48EBRX | |
160x48 | 135x114 | 105x80 | 13.5x11 | 190 | 300 | |
| LAPF200A48EBRX | |
200x48 | 135x114 | 105x80 | 13.5x11 | 235 | 300 | |
| LAPF250A50EBRX | |
250x50 | 135x114 | 105x80 | 13.5x11 | 290 | 400 |
Wheel Tread Material
Elastic Rubber
Wheel Centre Material
Polyamide
Install Type
Top plate
Lock Type
Fixed
Temperature Range
-20 to + 80℃
Color
Blue

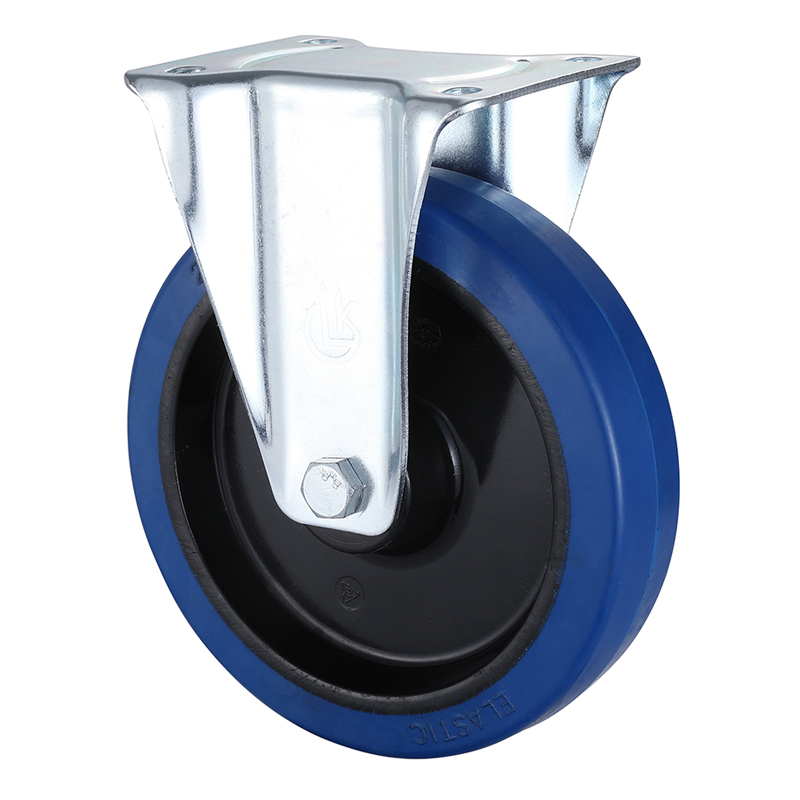

L&K Industrial Blue Elastic Rubber Fixed Castors
German-engineered fixed-direction castors designed for stability and cost efficiency. Available in 80mm–250mm diameters (100mm/200mm optimized for flight cases), featuring blue elastic rubber tread (Shore A 68±5 hardness) and roller bearings.
Key Features:
✔️ High Stability: Fixed design prevents swivel, ideal for linear movement
✔️ Floor Protection: Non-marking rubber preserves surfaces
✔️ Extreme Durability: Operates in -40°C to +80°C environments
✔️ Bulk Order Ready: Fast dispatch from German warehouses
Applications: Trolleys, flight cases, industrial equipment.
