Industrial Non-marking Grey Solid Rubber Swivel Castors for Garbage Truck
| Code Number |
Bearing Type |
Wheel diameter x Width of thread ( mm ) |
Size of plate ( mm ) |
Plate hole centres ( mm ) |
Plate hole ( mm ) |
Offset ( mm ) |
Overall height ( mm ) |
Load capacity ( mm ) |
|---|---|---|---|---|---|---|---|---|
| LAPS80B30GBRX |  |
80X30 | 105x80 | 80x60 | 11x9 | 36 | 100 | 50 |
| LAPS100B30GBRX | |
100X30 | 105x80 | 80x60 | 11x9 | 36 | 125 | 70 |
| LAPS125B37.5GBRX | |
125X37.5 | 105x80 | 80x60 | 11x9 | 36 | 155 | 100 |
| LAPS160B40GBRX | |
160X40 | 135x110 | 105x80 | 13.5x11 | 52 | 190 | 135 |
| LAPS200B50GBRX | |
200X50 | 135x110 | 105x80 | 13.5x11 | 54 | 235 | 205 |
| LAPS250B60GBRX | |
250X60 | 135x110 | 105x80 | 13.5x11 | 66 | 290 | 295 |
Wheel Tread Material
Solid Rubber
Wheel Centre Material
Pressed steel
Install Type
Top plate
Lock Type
Swivel
Temperature Range
-20 to + 60℃
Color
Grey

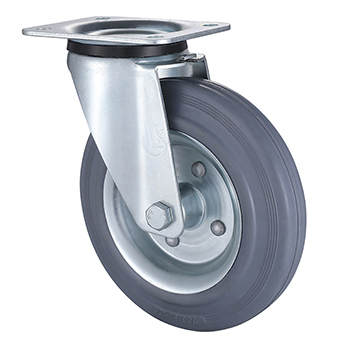

This non-marking solid rubber castor for garbage trucks has a 360-degree swivel bracket that can rotate at any angle. The sealed bearing does not require daily maintenance, has greater rolling force, and is easy and pleasant to push.
The castor is made of gray solid rubber, hardness A 85+3, core material is cold-rolled steel plate, roller bearing, ambient temperature -20°C to 60°C.
We are a reliable solid rubber supply company, and the castors are made of high-quality environmentally friendly rubber and meet environmental standards. Suitable for some lightweight DIY trolleys and garbage cans. If you have customized requirements, such as top plate size, mounting hole spacing, bracket type and wheel width, we can also provide you with customized wheels.
Application:
Suitable for trolleys, cages and transport equipment in any industry.
If you have any other requirements for castors, please contact our sales manager (Mr. Luka) immediately.
Available in large quantities, large orders can enjoy discounts.
