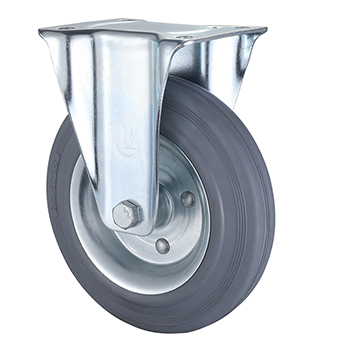

L&k Gmbh Industrial non-marking Grey Solid Rubber Rigid Castors
| Code Number |
Bearing Type |
Wheel diameter x Width of thread ( mm ) |
Size of plate ( mm ) |
Plate hole centres ( mm ) |
Plate hole ( mm ) |
Overall height ( mm ) |
Load capacity ( mm ) |
|
|---|---|---|---|---|---|---|---|---|
| LAPF80B30GBRX |  |
80x30 | 102X87 | 80x60 | 11x9 | 100 | 50 | |
| LAPF100B30GBRX | |
100x30 | 102X87 | 80x60 | 11x9 | 125 | 70 | |
| LAPF125B37.5GBRX | |
125x37.5 | 102x87 | 80x60 | 11x9 | 155 | 100 | |
| LAPF160B40GBRX | |
160x40 | 135x114 | 105x80 | 13.5x11 | 190 | 135 | |
| LAPF200B50GBRX | |
200x50 | 135x114 | 105x80 | 13.5x11 | 235 | 205 | |
| LAPF250B60GBRX | |
250x60 | 135x114 | 105x80 | 13.5x11 | 290 | 295 |
Wheel Tread Material
Solid Rubber
Wheel Centre Material
Pressed steel
Install Type
Top plate
Lock Type
Fixed
Temperature Range
-20 to + 60℃
Color
Grey
L&K GmbH Non-Marring Rigid Casters - Floor-Safe Material Handling Solutions
Technical Specifications
◆ Non-Marking Certification: DIN 15156 compliant grey elastomer
◆ Load Capacity: 295kg/wheel (EN 12533:2016 Class D)
◆ Diameter Range: Ø80-250mm
◆ Operational Range: -20°C to +80°C thermal stability
Fixed direction walking, no swivel ability, higher stability, usually more economical than other types of castors. Casters are made of grey solid rubber, hardness A 85+3, core made of cold rolled steel plate, roller bearing, ambient temperature -20°C to 60°C.
We are a reliable solid rubber supply company, castors are made of high-quality environmentally friendly rubber, meet environmental standards. Suitable for some light DIY trolleys and trash cans. If you have custom requirements, such as top plate size, mounting hole spacing, bracket type and wheel width, we can also provide you with custom wheels. Application: Suitable for trolleys, cages and transport equipment in any industry. If you have any other requirements for castors, please contact our sales manager (Mr. Luka) today.
If you have any upcoming projects that require rubber castors, please contact us and we will discuss how to best meet your needs. Contact us now to get our support. Available in bulk quantities, discounts available for large orders.
