Institutional Grey Thermoplastic Rubber ф13 Bolt Hole Castors for Trolley (Fast Delivery)
| Code Number |
Bearing Type |
Wheel diameter x Width of thread ( mm ) |
Offset ( mm ) |
Centre hole ( mm ) |
Overall height ( mm ) |
Load capacity ( mm ) |
||
|---|---|---|---|---|---|---|---|---|
| KAHS75B30TAPX |  |
75x30 | 30.5 | ф13 | 100.5 | 75 | ||
| KAHS100B32TAPX | |
100x32 | 40 | ф13 | 134.5 | 100 | ||
| KAHS125B32TAPX | |
125x32 | 43 | ф13 | 159.5 | 100 |
Wheel Tread Material
Thermoplastic Rubber
Wheel Centre Material
Polypropylene
Install Type
Bolt hole
Lock Type
Swivel
Temperature Range
-20 to + 60℃
Color
Grey

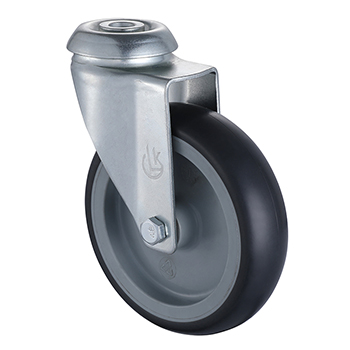

Enhance mobility with grey ф13 bolt thermoplastic rubber castors from L&K Rollen. Made of high-quality thermoplastic rubber, these castors meet environmental standards. The castor diameter is 75mm to 125mm, and the load capacity is 75kg to 100kg. It is suitable for all indoor light trolleys or custom trolleys, institutional furniture, and the tread hardness Shore A 85 can protect the floor well. Strict quality inspection ensures the safety and reliability of this TPR castor.
Features
Tread material: Made of grey thermoplastic rubber, the wheel core is polypropylene, with a hardness of A85 to protect the floor and have outstanding wear resistance
Bracket design: The castor shell is made of steel, the surface is galvanized, and it complies with RoHS standard coating. There is a ф13 bolt hole on the top, which can be easily installed on any trolley
Diameter and load: OD 75mm to 100mm, load 75kg to 100kg
Application
Suitable for trolleys, cages and transportation equipment in any industry.
If you have any other requirements for castors, please contact our sales manager (Mr. Luka) immediately.
Available in bulk, discounts available for large orders.
