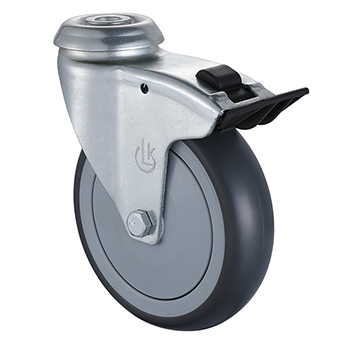

Institutional Bolt Hole Grey Thermoplastic Rubber Castors with Total Brake ( In Stock )
| Code Number |
Bearing Type |
Wheel diameter x Width of thread ( mm ) |
Offset ( mm ) |
Centre hole ( mm ) |
Overall height ( mm ) |
Load capacity ( mm ) |
||
|---|---|---|---|---|---|---|---|---|
| KAHB75B30TABB |  |
75x30 | 30.5 | ф13 | 100.5 | 75 | ||
| KAHB100B32TABB | |
100x32 | 40 | ф13 | 134.5 | 100 | ||
| KAHB125B32TABB | |
125x32 | 43 | ф13 | 159.5 | 100 |
Wheel Tread Material
Thermoplastic Rubber
Wheel Centre Material
Polypropylene
Install Type
Bolt hole
Lock Type
Total Brake
Temperature Range
-20 to + 60℃
Color
Grey
German L&K Rollen supplier, wholesale gray thermoplastic rubber castor with brake and ф13 bolt, the wheel is equipped with dust cover, in stock in the warehouse, ready for delivery, free storage for up to one month, the maximum load of this TPR castor is 100kg, the castor diameter is 75mm to 125mm, suitable for all institutional trolleys or low-load trolleys, strict quality inspection to ensure quality.
Features
Tread material: made of gray thermoplastic rubber, wheel core is polypropylene, hardness is A85, no mark and has outstanding reliability
Bracket design: castor shell is made of steel, surface galvanized, RoHS compliant coating, ф13 bolt, 360 degree arbitrary rotation
Diameter and load: outer diameter 75mm to 100mm, load 75kg to 100kg
Application
Suitable for any institutional trolley, light trolley.
If you have any other requirements for castors, please contact our sales manager (Mr. Luka) immediately.
Available in bulk quantities, discounts available for large orders.
