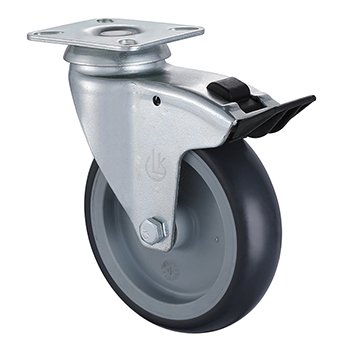

Institutional Swivel Grey Thermoplastic Rubber Castors with Total Brake for Indoor Trolley
| Code Number |
Bearing Type |
Wheel diameter x Width of thread ( mm ) |
Size of plate ( mm ) |
Plate hole centres ( mm ) |
Plate hole ( mm ) |
Offset ( mm ) |
Overall height ( mm ) |
Load capacity ( mm ) |
|---|---|---|---|---|---|---|---|---|
| KAPB75B30TAPX |  |
75X30 | 77x67 | 55.7x46.5 | 16x8.5 | 30.5 | 103 | 75 |
| KAPB75B30TAPX | |
75X30 | 105x80 | 80x60 | 10.5 | 30.5 | 103 | 75 |
| KAPB100B32TAPX | |
100x32 | 77x67 | 55.7x46.5 | 16x8.5 | 40 | 137 | 100 |
| KAPB100B32TAPX | |
100x32 | 105x80 | 80x60 | 10.5 | 40 | 137 | 100 |
| KAPB125B32TAPX | |
125X32 | 77x67 | 55.7x46.5 | 16x8.5 | 43 | 162 | 100 |
| KAPB125B32TAPX | |
125X32 | 105x80 | 80x60 | 10.5 | 43 | 162 | 100 |
Wheel Tread Material
Thermoplastic Rubber
Wheel Centre Material
Polypropylene
Install Type
Top plate
Lock Type
Total Brake
Temperature Range
-20 to + 60℃
Color
Grey
L&K Rollen, a German supplier, supplies grey thermoplastic rubber swivel castors with brakes. The tread hardness of A85 can protect the floor well and complies with RoHS environmental protection standards. The castor diameter is 75mm to 125mm, and the load is 75kg to 100kg. It is suitable for all indoor light trolleys. Strict quality inspection ensures 100% quality; 360-degree rotation, two-way brakes ensure that the castor can stop the trolley steadily, suitable for any trolley.
Features
Tread material: Made of grey thermoplastic rubber, the wheel core is polypropylene, with a hardness of A85 to protect the floor and have outstanding reliability, non-marking
Bracket design: The castor shell is made of steel, the surface is galvanized, and it complies with RoHS standard coating, 360-degree rotation with double brake bracket
Diameter and load: outer diameter 75mm to 100mm, load 75kg to 100kg
Applications
Suitable for light-duty trolleys and light-duty equipment in any indoor area.
