Institutional Fixed Grey Thermoplastic Rubber Castors for Trolley (Bulk Discount Pricing)
| Code Number |
Bearing Type |
Wheel diameter x Width of thread ( mm ) |
Size of plate ( mm ) |
Plate hole centres ( mm ) |
Plate hole ( mm ) |
Overall height ( mm ) |
Load capacity ( mm ) |
|
|---|---|---|---|---|---|---|---|---|
| KAPF75B30TAPX |  |
75X30 | 77x67 | 55.7x46.5 | 16x8.5 | 103 | 75 | |
| KAPF75B30TAPX | |
75X30 | 105x80 | 80x60 | 10.5 | 103 | 75 | |
| KAPF100B32TAPX | |
100x32 | 77x67 | 55.7x46.5 | 16x8.5 | 137 | 100 | |
| KAPF100B32TAPX | |
100x32 | 105x80 | 80x60 | 10.5 | 137 | 100 | |
| KAPF125B32TAPX | |
125x32 | 77x67 | 55.7x46.5 | 16x8.5 | 162 | 100 | |
| KAPF125B32TAPX | |
125x32 | 105x80 | 80x60 | 10.5 | 162 | 100 |
Wheel Tread Material
Thermoplastic Rubber
Wheel Centre Material
Polypropylene
Install Type
Top plate
Lock Type
Fixed
Temperature Range
-20 to + 60℃
Color
Grey

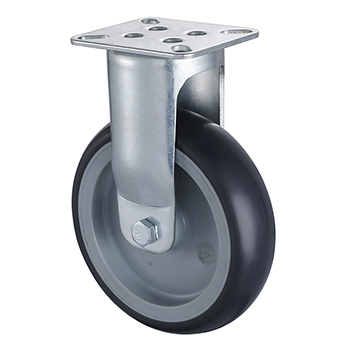

L&K Rollen, a German supplier, supplies gray fixed thermoplastic rubber castors, made of high-quality thermoplastic rubber with a hardness of A85, which can protect the floor well and meet RoHS environmental protection standards. The castor diameter is 75mm to 125mm, and the load is 75kg to 100kg. It is suitable for all indoor light trolleys. If there is no steering requirement, using fixed bracket castors is the most economical choice, and there are discount prices for large orders.
Features
Tread material: Made of gray thermoplastic rubber, the wheel core is polypropylene, with a hardness of A85, which can protect the floor and has outstanding reliability
Bracket design: The castor shell is made of steel, the surface is galvanized, and it meets RoHS standard coating, fixed bracket
Diameter and load: outer diameter 75mm to 100mm, load 75kg to 100kg
Application
Suitable for trolleys, cages and transportation equipment in any industry.
If you have any other requirements for castors, please contact our sales manager (Mr. Luka) immediately.
Available in large quantities, discounts for large orders.
