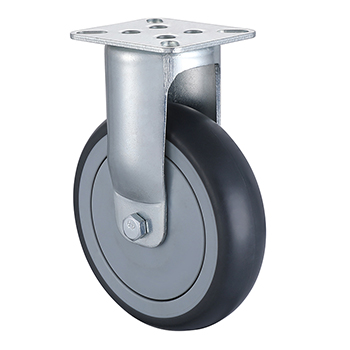

Institutional Grey Thermoplastic Rubber Fixed Castors with Dust Cover (Durable & in Stock)
Code Number |
![]() Bearing Type |
![]() Wheel diameter x Width of thread ( mm ) |
![]() Size of plate ( mm ) |
![]() Plate hole centres ( mm ) |
![]() Plate hole ( mm ) |
![]() Overall height ( mm ) |
![]() Load capacity ( mm ) |
|
---|---|---|---|---|---|---|---|---|
KAPF75B30TABB | ![]() |
75X30 | 77x67 | 55.7x46.5 | 16x8.5 | 103 | 75 | |
KAPF75B30TABB | ![]() |
75X30 | 105x80 | 80x60 | 10.5 | 103 | 75 | |
KAPF100B32TABB | ![]() |
100x32 | 77x67 | 55.7x46.5 | 16x8.5 | 137 | 100 | |
KAPF100B32TABB | ![]() |
100x32 | 105x80 | 80x60 | 10.5 | 137 | 100 | |
KAPF125B32TABB | ![]() |
125x32 | 77x67 | 55.7x46.5 | 16x8.5 | 162 | 100 | |
KAPF125B32TABB | ![]() |
125x32 | 105x80 | 80x60 | 10.5 | 162 | 100 |
Wheel Tread Material
Thermoplastic Rubber
Wheel Centre Material
Polypropylene
Install Type
Top plate
Lock Type
Fixed
Temperature Range
-20 to + 60℃
Color
Grey
We are a German TPR castor supplier, wholesale sales of gray thermoplastic rubber castors, this TPR castor uses a fixed bracket (no swivel ), equipped with a dust cover, we have stock in the warehouse and can deliver it to you quickly, strict quality inspection to ensure reliability and durability, it is the best choice for institutional trolleys and light trolleys.
Features
Tread material: made of gray thermoplastic rubber, wheel core is polypropylene, hardness A85 non-marking and has outstanding durability
Bracket design: castor shell is made of steel, surface galvanized, RoHS compliant coating, fixed castor bracket
Diameter and load: outer diameter 75mm to 100mm, load 75kg to 100kg
Application
Suitable for any institutional trolley and light trolley.
If you have any other requirements for castors, please contact our sales manager (Mr. Luka) immediately.
Available in large quantities, large orders can enjoy discounts.
