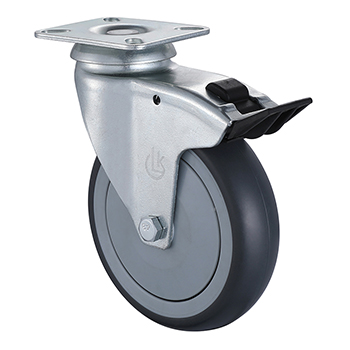

Institutional Grey Thermoplastic Rubber Total Brake Castors with Dust Cover for Trolley
| Code Number |
Bearing Type |
Wheel diameter x Width of thread ( mm ) |
Size of plate ( mm ) |
Plate hole centres ( mm ) |
Plate hole ( mm ) |
Offset ( mm ) |
Overall height ( mm ) |
Load capacity ( mm ) |
|---|---|---|---|---|---|---|---|---|
| KAPB75B30TABB |  |
75X30 | 77x67 | 55.7x46.5 | 16x8.5 | 30.5 | 103 | 75 |
| KAPB75B30TABB | |
75X30 | 105x80 | 80x60 | 10.5 | 30.5 | 103 | 75 |
| KAPB100B32TABB | |
100x32 | 77x67 | 55.7x46.5 | 16x8.5 | 40 | 137 | 100 |
| KAPB100B32TABB | |
100x32 | 105x80 | 80x60 | 10.5 | 40 | 137 | 100 |
| KAPB125B32TABB | |
125X32 | 77x67 | 55.7x46.5 | 16x8.5 | 43 | 162 | 100 |
| KAPB125B32TABB | |
125X32 | 105x80 | 80x60 | 10.5 | 43 | 162 | 100 |
Wheel Tread Material
Thermoplastic Rubber
Wheel Centre Material
Polypropylene
Install Type
Top plate
Lock Type
Total Brake
Temperature Range
-20 to + 60℃
Color
Grey
We are a German TPR caster supplier, wholesale sales of gray thermoplastic rubber full brake casters for trolleys, equipped with dust covers, strict quality inspection to ensure reliability and durability, outer diameter is 75mm to 100mm, load: 75kg to 100kg best choice for institutional trolleys and light trolleys, we have stock in the warehouse and can deliver to you quickly, contact sales immediately.
Features
Tread material: made of gray thermoplastic rubber, wheel core is polypropylene, hardness is A85, no marks and has outstanding durability
Bracket design: caster shell is made of steel, surface galvanized, RoHS compliant coating, 360 degree rotation with full brake
Diameter and load: outer diameter 75mm to 100mm, load 75kg to 100kg
Application
Suitable for any institutional trolley and light trolley.
If you have any other requirements for casters, please contact our sales manager (Mr. Luka) immediately.
Available in bulk quantities, discounts available for large orders.
